شاشة سامسونج QM43C
QM43C
- Additional information
- نبذة عن:
- المواصفات
Additional information
| Weight | 13.3 kg |
|---|---|
| Dimensions | 941.184 × 529.416 cm |
Maximum impact in minimum space

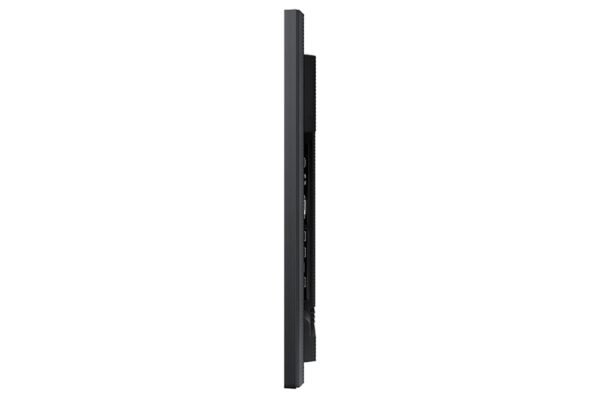

Ultra Slim Depth
The QMC’s unparalleled ultra-slim 28.5 mm depth makes it the thinnest option in Samsung’s UHD series. It is compatible with a Slim Fit Wall Mount, which allows you to install it neatly and easily in any location. QMC optimizes space with its sleek design that blends seamlessly into your business environment.
Slim design. Stunning performance.
Elegant UHD Signage – QMC Series
Introducing QMC, the slimmest display in the Samsung UHD Signage. It brings elegance to your business display while maximizing space. Its enhanced internal solutions and intuitive home screen UX make it easy to use. Businesses in various verticals can achieve growth with QMC’s efficiency and design innovation.
Change your approach to display management
Samsung VXT
Start your Samsung VXT* 60 day free trial today. Samsung VXT is a cloud-based, digital signage software solution that brings together content management and remote device management capabilities. It allows users to remotely manage hardware settings and troubleshoot issues from afar, while effortlessly creating and deploying content without the need for training.
Clean visuals in landscape or portrait mode
Uniform Bezels
The bezels are consistent and even on all four sides of the display, with the same thickness and dimensions. The uniform design allows for visual consistency when the display is adjusted to portrait mode.¹
Secure and even mounting

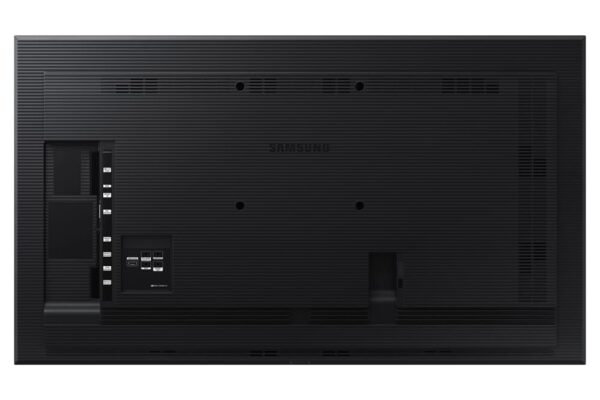

Centered VESA Holes
The central positioning of the VESA holes on the back of the display enable the weight to be evenly distributed for secure mounting. With the VESA holes now shifted to the center, users can adjust the display to portrait mode, while avoiding unintentional tilting.
Lifelike color for a pure, immersive viewing experience
Dynamic Crystal Color
Every picture is more immersive with one billion shades of color. Dynamic Crystal Color delivers true-to-life variations, allowing customers to see every subtlety.
View lifelike shades of color in powerful 4K
Quantum Processor Lite 4K
Samsung’s industry-leading video processing technology enhances every piece of content for clarity and consistency. Intelligent UHD upscaling technology, powered by Samsung’s Quantum Processor Lite 4K, elevates lower-resolution video to UHD, providing a professional picture quality.²
Ensure critical information is always visible
Non-glare
QMC displays feature reliable, non-glare panels that provide better visibility from all angles, any time of day. The non-glare display enables businesses to deliver accurate information in crucial locations, such as airports and train stations.
Connect with convenience
Home UI
QMC boasts greater usability with an upgraded home screen UI. For the ultimate convenience, popular categories such as Favorites, Sources, and Settings are displayed on the home screen, all available in one place. The Favorites folder grants users quick, easy access to frequently used features in a single click.
High-speed collaboration between screens, all wire-free.
Smartview+
SmartView+ enables wireless screen sharing without cable connections, ensuring easy collaboration. Users can enable the screen sharing function at the start of the meeting, allowing administrators to switch which screens are shared with no wires necessary.
Simplified calibration between screens with mobile app
Smart Calibration
Guaranteed brand consistency across every display in every location. Using the Samsung mobile app, Smart Calibration ensures accuracy for every display, with precise calibration that showcases logos and other collateral in the exact brand colors, as required.
Everyday Sustainability
Energy Star / EPEAT* / TÜV Rheinland Carbon Footprint*
Samsung is engaged in multiple efforts to reduce our environmental impact in smart signage. We encourage our users and customers to pursue a more sustainable life, as well. As a result, QMC series has earned a series of certifications for environmentally preferable products from highly recognized organizations in Germany and the U.S.
| Panel | |||
| Diagonal Size | 43 | ||
| Type | Edge LED BLU | ||
| Resolution | 3840*2160 (4K UHD) | ||
| Pixel Pitch(mm) | 0.2451 x 0.2451 | ||
| Active Display Area(mm) | 941.184 (H) x 529.416 (V) | ||
| Brightness(Typ.) | 500 nit | ||
| Contrast Ratio | 4000:1 | ||
| Viewing Angle(H/V) | 178/178 | ||
| Response Time(G-to-G) | 8ms(Typ.) | ||
| Display Colors | 16.7M(True Display) 1.07B(Ditherd 10bit) | ||
| Color Gamut | 92% (DCI-P3, CIE 1976) | ||
| Operation Hour | 24/7 | ||
| Haze | 44% | ||
| Display | |||
| Dynamic C/R | MEGA | ||
| H-Scanning Frequency | 30 ~ 81kHZ | ||
| V-Scanning Frequency | 48 ~ 75HZ | ||
| Maximum Pixel Frequency | 594MHz | ||
| Sound | |||
| Speaker Type | Built in Speaker(10W + 10W) | ||

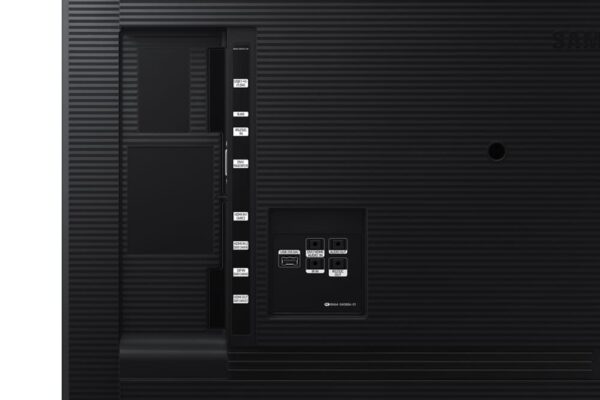

| Connectivity | |||
| Input | |||
| RGB | DVI-D, Display Port 1.2 (1) | ||
| Video | HDMI 2.0 (2) | ||
| HDCP | HDCP2.2 | ||
| Audio | Stereo mini Jack, DVI, HDMI | ||
| USB | USB 2.0 x 2 | ||
| Output | |||
| RGB | HDMI 2.0 (Loop-out) | ||
| Audio | Stereo mini Jack | ||
| External Control | RS232C(in/out) thru stereo jack, RJ45 | ||
| External Sensor | IR | ||
| Power | |||
| Type | Internal | ||
| Power Supply | AC 100 – 240 V~ (+/- 10 %), 50/60 Hz | ||
| Power Consumption | |||
| Max[W/h] | 110 | ||
| Typical[W/h] | 74 | ||
| Rating[W/h] | 100 | ||
| BTU(Max) | 375.1 | ||
| Sleep mode | 0.5 | ||
| Mechanical Specification | |||
| Dimension (mm) | |||
| Set | 967.5 x 557.7 x 48.3 | ||
| Package | 1095 x 676 x 151 | ||
| Weight (kg) | |||
| Set | 10 | ||
| Package | 13.3 | ||
| VESA Mount (mm) | 200 X 200 | ||
| Stand Type | Foot Stand (Optional) | ||
| Bezel Width (mm) | 9.2mm(U/L/R), 11.2mm(B) | ||
| Operation | |||
| Operating Temperature | 0 ℃ ~ 40 ℃ | Humidity | 10 % ~ 80 % |
| Feature | |||
| Key Features | UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0 | ||
| Orientation | N/A | ||
| Remote Control | N/A | ||
| Special Features | H/W: Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), Video Wall Daisy Chain(HDCP2.2:4EA,HDCP1.4:7EA), IP5x, Wi-Fi/BT S/W: Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting) | ||
| Internal Player | Processor | Coretex A72 1.7GHz Quad-Core CPU | |
| On-Chip Cache Memory | L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB | ||
| Clock Speed | 1.7GHz | ||
| Main Memory Interface | 2.5GB LPDDR4 1.5GHz 64bit | ||
| Graphics | Graphic resolution : 1920×1080 Output resolution : 3840×2160 (Scale up from graphic processing result.) | ||
| Storage (FDM) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) | ||
| Multimedia | *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG | ||
| IO Ports | USB 2.0 | ||
| Operating System | Tizen 4.0 (VDLinux) | ||
| Certification | |||
| Safety | 60950-1 | ||
| EMC | Class B | ||
| Security | 802.1x(WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP | ||
| Accessory | |||
| Included | Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries | ||
| Optional | |||
| Stand | STN-L4355F | ||
| Mount | WMN4070SE | ||
| Specialty | CML400XK | ||
| Media Player | |||
| Media Player | N/A | ||
